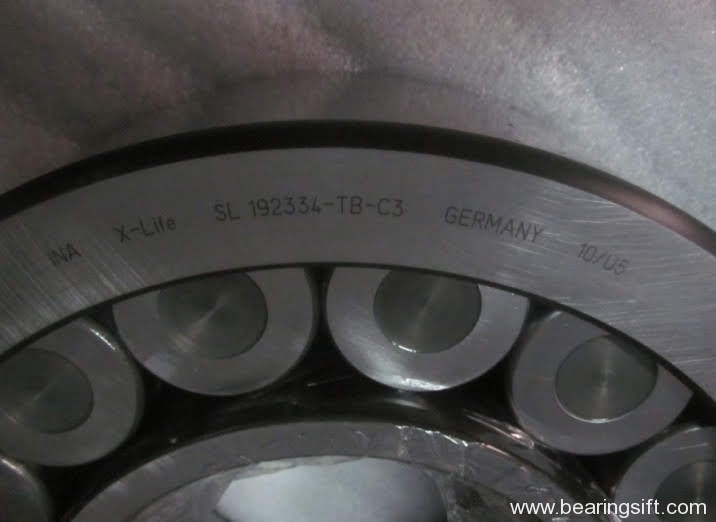

SL192334-TB-C3

Cylindrical roller bearings
semi-locating bearing, full complement cylindrical roller set, self-retaining roller set, dimension series 23

d 170 mm
D 360 mm
B 120 mm
D1 295 mm
Da max 295 mm
d1 226,6 mm
da min 203,5 mm
dc min 226,5 mm
F 203,6 mm
ra max 4 mm
rmin 4 mm
s 7 mm Axial displacement
m 59,2 kg Mass
Cr 1830000 N Basic dynamic load rating, radial
C0r 2380000 N Basic static load rating, radial
Cur 265000 N Fatigue limit load, radial
nG 1200 1/min Limiting speed
nϑr 730 1/min Reference speed
