FAG Spindle bearing - FAG XCB71902E-T-P4S

FAG XCB71902E-T-P4S

FAG XCB71902E-T-P4S  Spindle Bearings

FAG XCB71902E-T-P4S spindle bearings are single row angular contact ball bearings of the highest precision. This special Spindle bearing is of high precision/excellent speed-ability/ high rigidity / good vibration behaviour.

FAG Spindle Bearing XCB71902E-T-P4S Technical Datas

Bearing Model: XCB71902E-T-P4S Bearing type: Spindle Bearing Ball type: X-life ultra
Ceramic balls
Brand: FAG Precision: P4 Origin: Germany
ID: 15mm Weight: 0.01kg Etk: 20.9
OD: 28mm Rsmin: 0.3 R1smin: 0.3
B: 7mm da h12: 18 Da H12: 25.5
ra max: 0.3 rb max: 0.3 Cdyn kN: 7.5
C0stat kN: 1.93 Grease min: 70000 Oil min: 110000
Fv L: 17 Fv M: 48 Fv H: 125
Kae L: 50 Kae M: 144 Kae H: 386
Sa L: 36.3 Sa M: 53.1 Sa H: 76.7

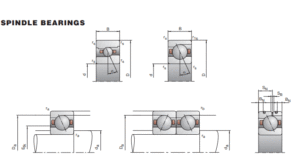

Bearing XCB71902E-T-P4S Drawing

FAG Spindle bearing drawing 300x167 - FAG XCB71902E-T-P4S
