FAG 234468M-SP

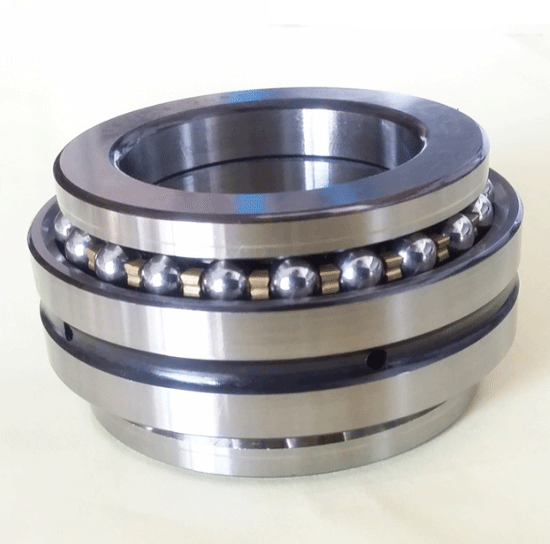

FAG 234468M-SP ANGULAR CONTACT
THRUST BALL BEARINGS
FAG 234468M-SP double direction angular contact thrust ball bearings were developed for the machine tool industry and are manufactured exclusively as high-precision bearings. FAG 234468M.SP accommodate axial loads in the main spindles of machine tools and exhibit the same abutment dimensions as double row cylindrical roller bearings of series NN30 that take up the radial loads.
FAG Bearing 234406M-SP Technical Datas
| Bearing Number: | 234468M-SP | Bearing type: | Angular Contact Thrust Ball Bearing | Cage type: | Brass cage |
| Brand: | FAG | Precision: | Super Precision | Origin: | Germany |
| ID: | 340mm | Weight: | 138kg | Other: | Double direction |
| OD: | 520mm | rsmin: | 4 | r1smin | 1.5 |
| B: | 212mm | d1 | 459 | B1 | 53 |
| Ba | 106 | ns | 17.7 | ds | 9.5 |
| da h12 | 413 | Da H12 | 485.5 | ra max: | 4 |
| rb max | 1.5 | Cdyn kN | 540 | C0 stat | 2000 |
| Speed Grease min: | 1100 | Speed Oil min | 1600 | Fv N | 1600 |
| KaE | 11820 | Axial Rigidity Sa N/µm | 2265 | Bearing Code | 234468M.SP |
