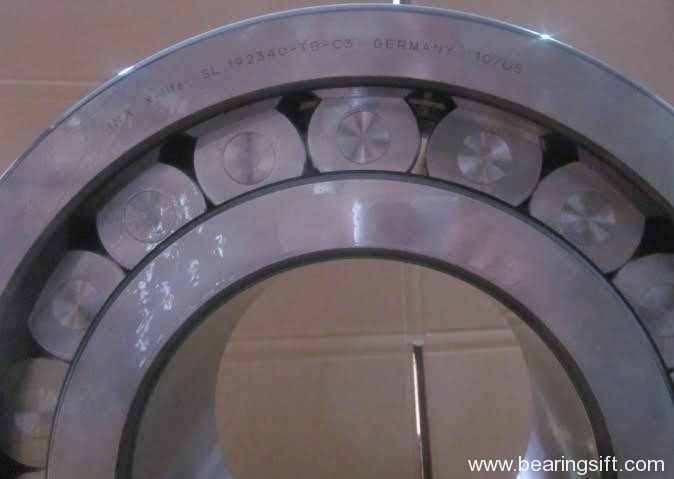

INA SL 192340-TB-C3 Roller bearing
SL192340-TB-C3
Cylindrical roller bearings
semi-locating bearing, full complement cylindrical roller set, self-retaining roller set, dimension series 23
d 200 mm
D 420 mm
B 138 mm
D1 347,2 mm
Da max 347 mm
d1 265,7 mm
da min 238 mm
dc min 265,5 mm
F 238,5 mm
ra max 5 mm
rmin 5 mm
s 7 mm Axial displacement
m 92,1 kg Mass
Cr 2470000 N Basic dynamic load rating, radial
C0r 3300000 N Basic static load rating, radial
Cur 345000 N Fatigue limit load, radial
nG 1020 1/min Limiting speed
nϑr 570 1/min Reference speed
